# OpenFlare A lightweight, self-hosted OpenResty control plane for reverse proxy management, configuration rollout, node sync, TLS assets, and practical observability.

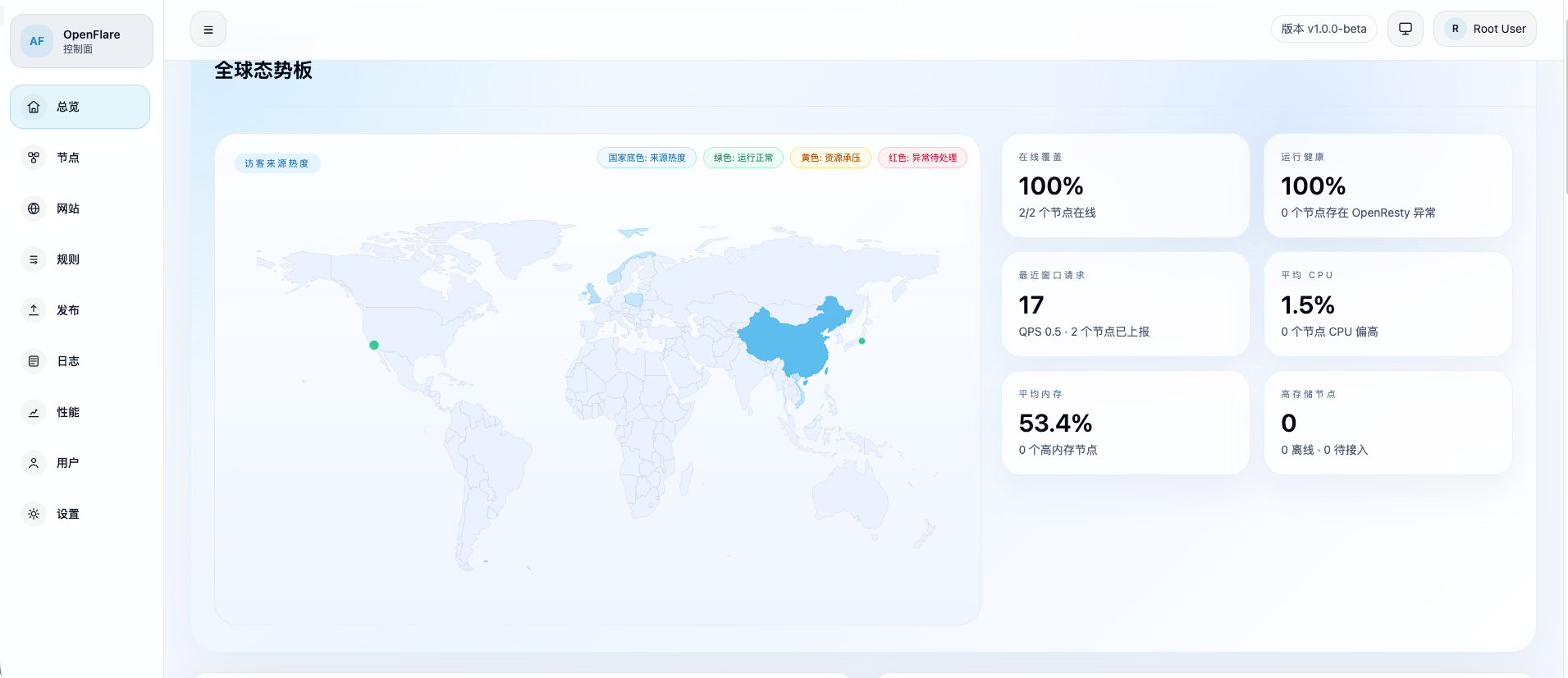

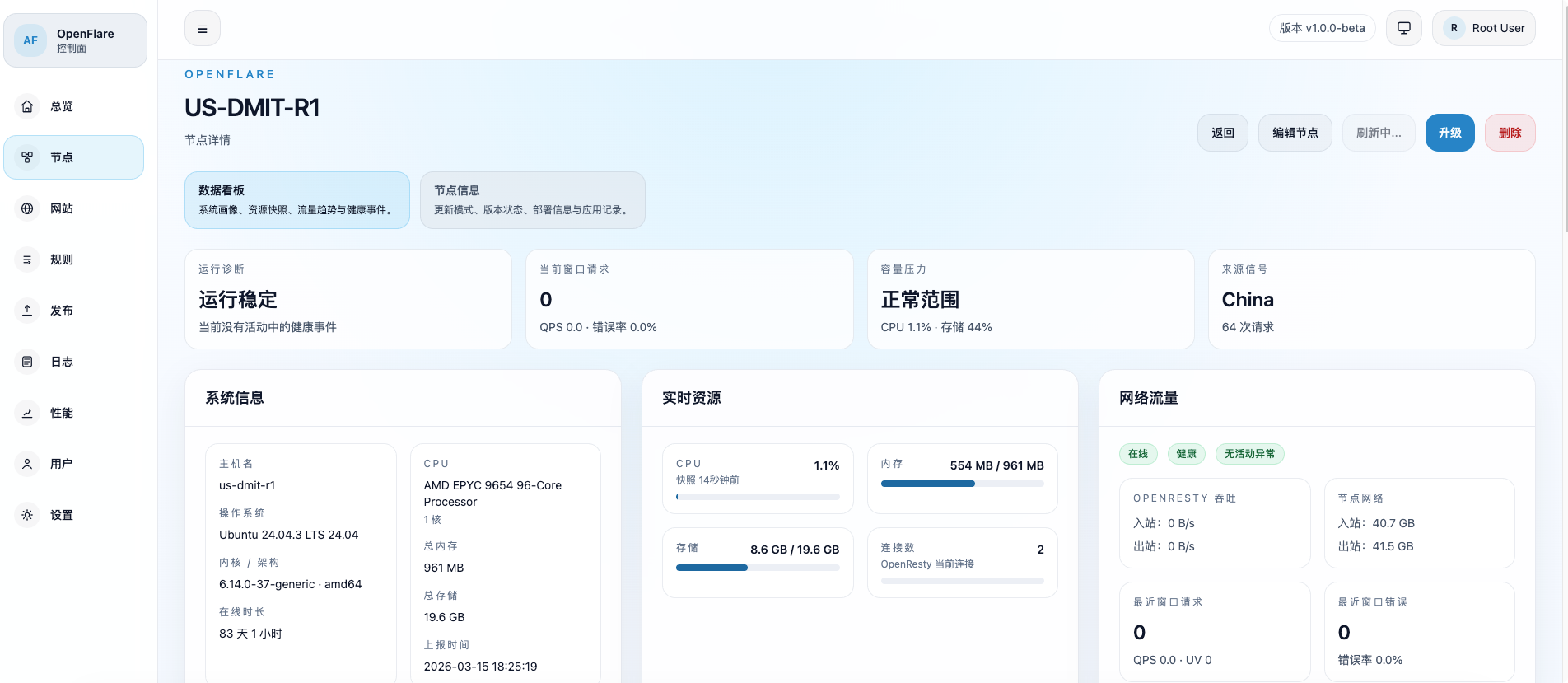

OpenFlare `1.0.0` is the current stable baseline. Phase six is complete and fully shipped; the repository documentation now focuses on the living system rather than historical implementation notes. ## Why It Exists OpenFlare is built for a simple but recurring operational need: * manage domain-to-origin reverse proxy rules from one control plane * publish immutable OpenResty configuration versions * let Agents pull, validate, reload, and roll back safely * manage certificates, domains, node credentials, and version state * expose practical dashboards for traffic, node health, and rollout status It is not trying to be a CDN SaaS platform, a multi-tenant control plane, or a general-purpose logging system. ## Core Capabilities * Versioned configuration with preview, publish, activate, and rollback * Node onboarding with `discovery_token` or per-node `agent_token` * Automated Agent apply flow with `openresty -t`, reload, and rollback * Managed OpenResty templates, performance settings, and cache settings * TLS certificate and domain management with exact and wildcard matching * Request analytics, node snapshots, and health event reporting * Controlled Server and Agent upgrade flows * A production frontend built with Next.js App Router, React 19, and Tailwind CSS 4 ## Architecture ```text OpenFlare Server (Gin + GORM + SQLite/PostgreSQL + Web UI) | | HTTP API / Config Pull v OpenFlare Agent (register / heartbeat / sync / apply / update) | v Local OpenResty or Docker OpenResty | v Origin ``` Responsibilities: * `openflare_server`: admin UI, management APIs, Agent APIs, rendering, rollout, and state storage * `openflare_agent`: node registration, heartbeat, sync, local apply, validation, reload, rollback, and self-update * `openflare_server/web`: the production admin frontend, exported statically and served by the Go server ## UI Preview ### Dashboard Overview ![OpenFlare dashboard overview](./docs/assets/readme/dashboard-overview.png) ### Node Detail and Install Command ![OpenFlare node detail](./docs/assets/readme/node-detail.png) ### Version Release Workflow ![OpenFlare version release](./docs/assets/readme/version-release.png) ## Quick Start ### 1. Start the Server ```yaml services: postgres: image: postgres:17-alpine restart: unless-stopped environment: POSTGRES_DB: openflare POSTGRES_USER: openflare POSTGRES_PASSWORD: replace-with-strong-password volumes: - postgres-data:/var/lib/postgresql/data healthcheck: test: ["CMD-SHELL", "pg_isready -U openflare -d openflare"] interval: 10s timeout: 5s retries: 5 openflare: image: ghcr.io/rain-kl/openflare:latest restart: unless-stopped depends_on: postgres: condition: service_healthy ports: - "3000:3000" environment: SESSION_SECRET: replace-with-random-string SQLITE_PATH: /data/openflare.db DSN: postgres://openflare:replace-with-strong-password@postgres:5432/openflare?sslmode=disable GIN_MODE: release LOG_LEVEL: info PORT: "3000" volumes: - openflare-data:/data volumes: postgres-data: openflare-data: ``` ```bash docker compose up -d ``` Open `http://localhost:3000` Default credentials: * Username: `root` * Password: `123456` ### 2. Install an Agent First-time registration with `discovery_token`: ```bash curl -fsSL https://raw.githubusercontent.com/Rain-kl/OpenFlare/main/scripts/install-agent.sh | bash -s -- \ --server-url http://your-server:3000 \ --discovery-token YOUR_DISCOVERY_TOKEN ``` Registration with a per-node `agent_token`: ```bash curl -fsSL https://raw.githubusercontent.com/Rain-kl/OpenFlare/main/scripts/install-agent.sh | bash -s -- \ --server-url http://your-server:3000 \ --agent-token YOUR_AGENT_TOKEN ``` The installer writes to `/opt/openflare-agent` by default, creates `openflare-agent.service`, and can be re-run for reinstall or upgrade. ### 3. Publish Your First Config 1. Sign in and create a reverse proxy rule 2. Review the preview or diff 3. Activate the new version 4. Wait for Agents to pick it up on the next heartbeat Version numbers follow `YYYYMMDD-NNN`. Versions are immutable; rollback is implemented by reactivating an older version. ## Repository Layout * `openflare_server`: monolithic control plane built with Gin, GORM, and SQLite/PostgreSQL * `openflare_server/web`: admin frontend built with Next.js 15 App Router * `openflare_agent`: Go Agent * `scripts`: install and helper scripts * `docs`: design, guidelines, deployment, and configuration docs ## Local Development ### Server ```bash cd openflare_server export SESSION_SECRET='replace-with-random-string' export SQLITE_PATH='./openflare.db' # Optional: switch to PostgreSQL by setting either DSN or SQL_DSN. # If the PostgreSQL database is empty and ./openflare.db exists, # OpenFlare migrates SQLite data automatically at startup. # export DSN='postgres://openflare:secret@127.0.0.1:5432/openflare?sslmode=disable' go run . ``` ### Frontend ```bash cd openflare_server/web corepack enable pnpm install pnpm build ``` ### Agent ```bash cd openflare_agent go run ./cmd/agent -config /path/to/agent.json ``` ### Useful Checks ```bash cd openflare_server GOCACHE=/tmp/openflare-go-cache go test ./... ``` ```bash cd openflare_agent GOCACHE=/tmp/openflare-go-cache go test ./... ``` ## Admin Surface The admin UI currently covers: * reverse proxy rules * config versions * node management * apply logs * TLS certificates * domain management * user management * settings * version upgrades Swagger UI is available at `/swagger/index.html` after login. ## License OpenFlare is released under the [Apache License 2.0](./LICENSE).
