A lightweight, self-hosted control plane for OpenResty that manages reverse proxy rules, configuration releases, node synchronization, TLS certificates, and observability.

Warning

After the first login with the root user, you must change the default password 123456.

This BETA version is a temporary product in the development and testing phase. It may contain unknown issues and should not be used in production environments.

Documentation

https://open-flare.pages.dev

Quick links:

Core Features

Reverse Proxy Configuration: Website management and multi-domain binding
Configuration Lifecycle: Preview, release, activation, and historical rollback
Agent Management: Auto-registration, heartbeat, sync, validation, reload, and failure rollback
OpenResty Administration: Main configuration, performance tuning, caching, and Lua resource hosting
WAF Protection: Global and custom rule groups with IP/CIDR and geographic blacklist/whitelist
Certificate Management: TLS certificates, domain assets, node credentials, and version control

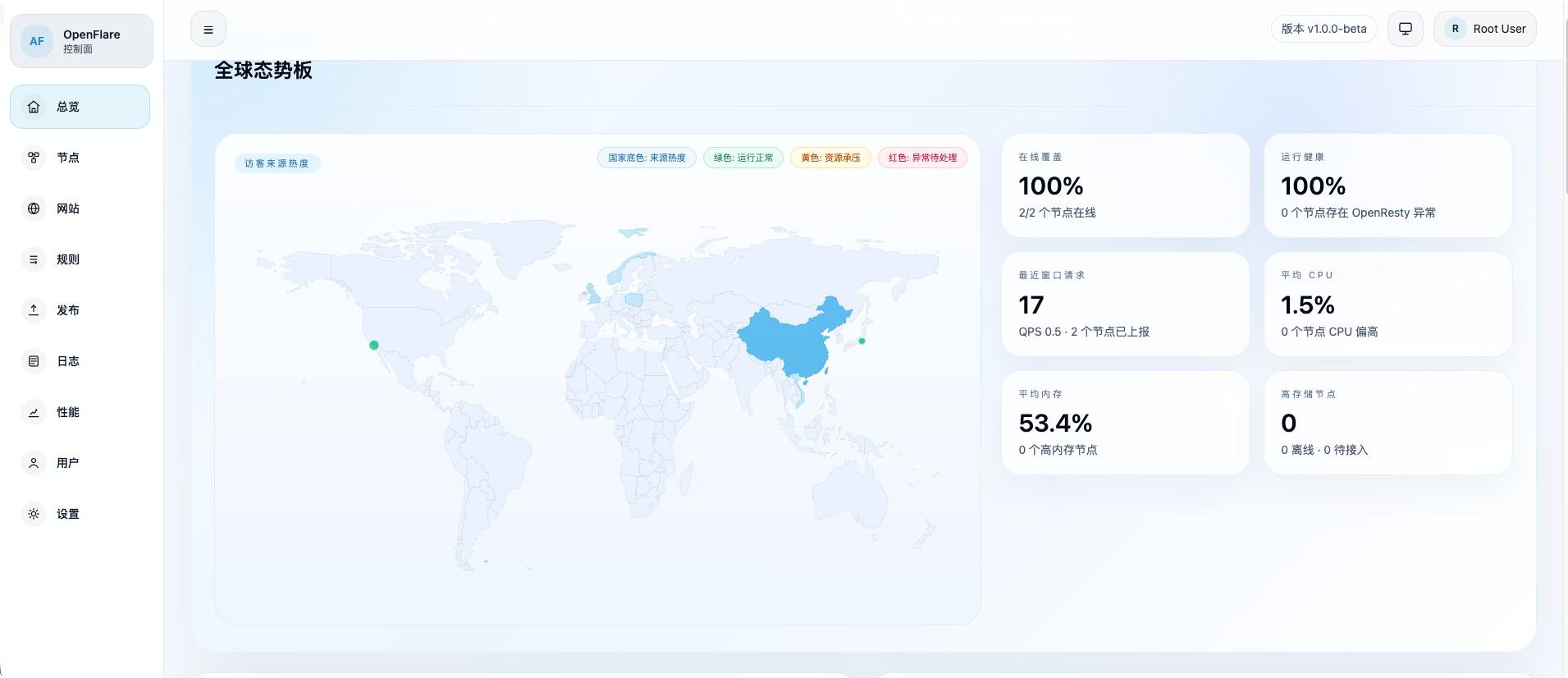

Observability: Request aggregation, access analytics, resource snapshots, health events, and node metrics

Quick Start

1. Launch Server

services:
  postgres:
    image: postgres:17-alpine
    restart: unless-stopped
    environment:
      POSTGRES_DB: openflare
      POSTGRES_USER: openflare
      POSTGRES_PASSWORD: replace-with-strong-password
    volumes:
      - postgres-data:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U openflare -d openflare"]
      interval: 10s
      timeout: 5s
      retries: 5

  openflare:
    image: ghcr.io/rain-kl/openflare:latest
    restart: unless-stopped
    depends_on:
      postgres:
        condition: service_healthy
    ports:
      - "3000:3000"
    environment:
      SESSION_SECRET: replace-with-random-string
      DSN: postgres://openflare:replace-with-strong-password@postgres:5432/openflare?sslmode=disable
      GIN_MODE: release
      LOG_LEVEL: info

volumes:
  postgres-data:

docker compose up -d

Access at: http://localhost:3000

Default credentials:

Username: root
Password: 123456

2. Install Agent

Before installing an Agent, install OpenResty on the target node, or use the Docker image with OpenResty built-in.

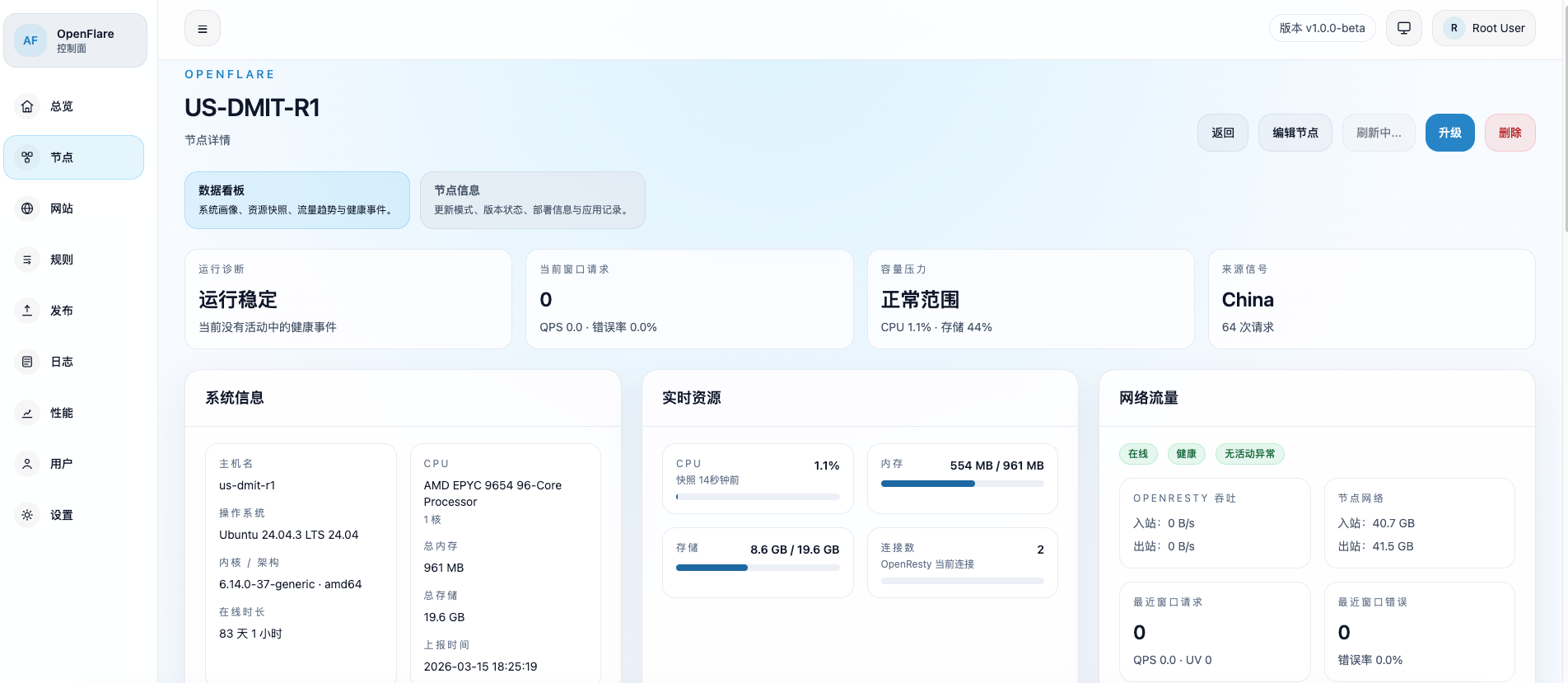

You can copy the installation command from the Dashboard → Node Management → Details → Node Info, or use the script below:

Docker Deployment

docker pull ghcr.io/rain-kl/openflare-agent:latest
docker rm -f openflare-agent 2>/dev/null || true
docker run -d --name openflare-agent --restart unless-stopped \
  -p 80:80 -p 443:443 \
  -e OPENFLARE_SERVER_URL=http://your-server:3000 \
  -e OPENFLARE_AGENT_TOKEN=YOUR_AGENT_TOKEN \
  ghcr.io/rain-kl/openflare-agent:latest

Local Installation

Using discovery_token:

curl -fsSL https://raw.githubusercontent.com/Rain-kl/OpenFlare/main/scripts/install-agent.sh | bash -s -- \
  --server-url http://your-server:3000 \
  --discovery-token YOUR_DISCOVERY_TOKEN

Using node-specific agent_token:

curl -fsSL https://raw.githubusercontent.com/Rain-kl/OpenFlare/main/scripts/install-agent.sh | bash -s -- \
  --server-url http://your-server:3000 \
  --agent-token YOUR_AGENT_TOKEN

The installation script defaults to /opt/openflare-agent, creates a openflare-agent.service, auto-detects openresty, and supports re-execution for upgrades.

3. Uninstall Agent

To completely uninstall the Agent and clean local data:

curl -fsSL https://raw.githubusercontent.com/Rain-kl/OpenFlare/main/scripts/uninstall-agent.sh | bash

The uninstall script stops and removes the openflare-agent.service, deletes the /opt/openflare-agent directory, and does not remove OpenResty.

4. Deploy Your First Configuration

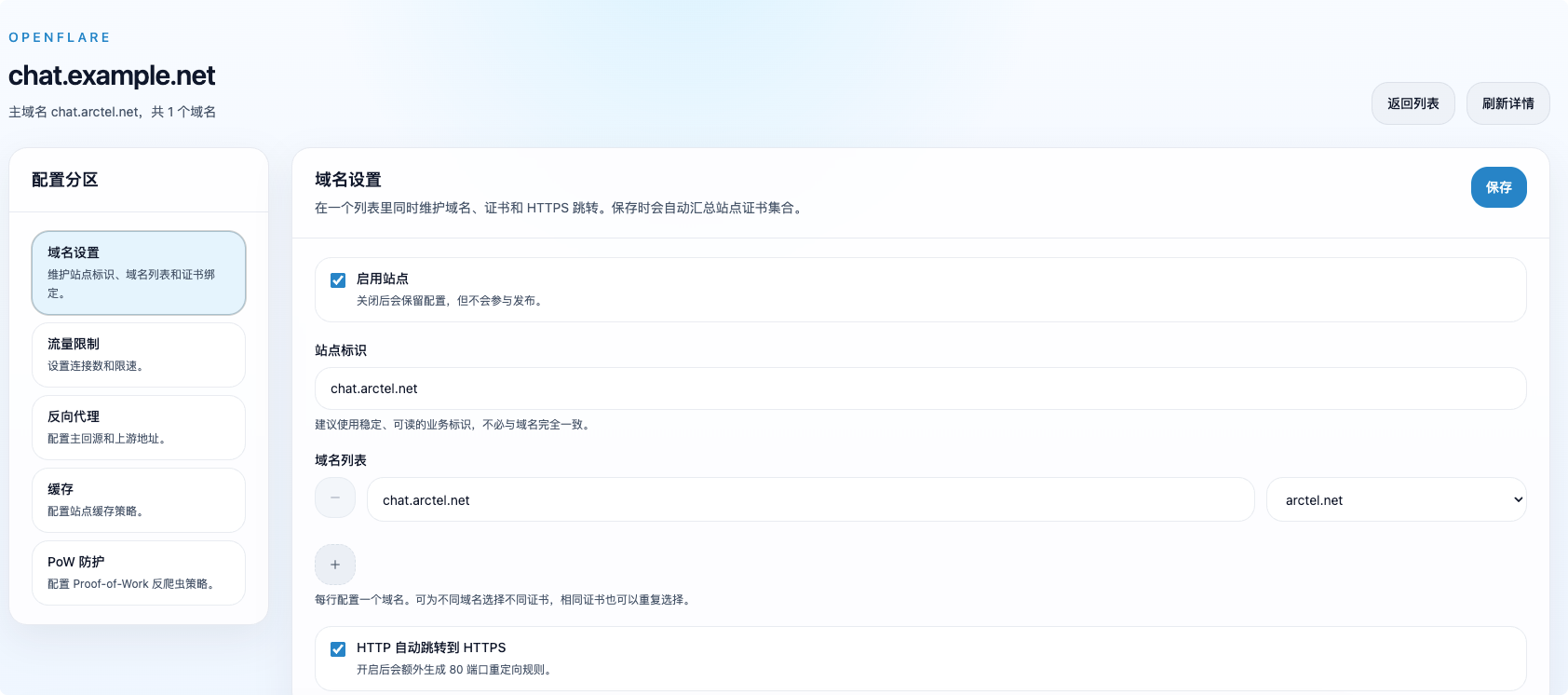

Log in to the dashboard and create a reverse proxy rule
Preview changes or view the changelog before publishing
Activate the new version
Agents receive notifications via WebSocket or pull configuration on next heartbeat

Versions are immutable with format YYYYMMDD-NNN. Rollback is performed by reactivating a previous version.
