OpenFlare

English | 简体中文

OpenFlare is an open-source CDN orchestration and edge security platform. It supports reverse proxy, centralized configuration synchronization, in-network tunneling (Tunnels), dynamic WAF protection, and CC defense challenges.

Warning

After the first login with the admin user, you must change the default password 12345678.

The BETA version is a temporary product in the development and testing stage and may have unknown issues. It should not be used in production environments.

Documentation

https://openflare.fyrn.link

Common entry points:

• Quick Start
• Deployment Guide
• Configuration Reference
• System Design

Core Capabilities

• Reverse Proxy Configuration Management: Uses website rules as the aggregation boundary, supports multi-domain binding and multi-upstream load balancing, and centrally manages reverse proxy configurations for all OpenResty nodes.
• Secure In-Network Tunneling (Tunnels): Open-source version of Cloudflare Tunnels. No public IP or exposed inbound ports are required. Securely reverse-proxy internal web services to the public internet through Relay relay nodes and OpenFlared clients.
• Edge WAF Security Protection: Provides global and custom rule groups, supports manual/auto/subscription-type IP groups, MaxMind GeoIP national-level geographic access control, IP group member Checksum differential synchronization (no Nginx reload required), and custom blocking responses.
• CC Defense and Human-Computer Challenge (PoW): Built-in high-performance client-side cryptography Proof of Work challenge (similar to Turnstile). Secures high-speed interception and blocking of zombie networks and crawlers at the gateway edge.
• Pages Static Hosting: Supports uploading or synchronizing pre-built artifacts from restricted Remote URLs or public GitHub Release assets. GitHub latest can be checked periodically and optionally auto-published. All sources are unified to generate immutable deployments, pulled by the edge Agent and served locally by OpenResty, supporting rollbacks, SPA Fallback, and API reverse proxy.
• TLS Certificate Automation: Supports dynamic certificate uploads, automatic multi-domain certificate matching and binding, and automatic issuance and renewal of certificates from Let's Encrypt via the ACME protocol.
• Uptime Kuma Monitoring Synchronization: Integrated with Uptime Kuma to automatically perform differential synchronization of monitoring site lists, real-time awareness of node availability and service status.
• SSO Single Sign-On: Supports GitHub OAuth and standard OIDC protocol for seamless integration with enterprise identity providers to achieve unified login.
• Unified Observability: Aggregates node request metrics, real-time access log details, host and Nginx resource snapshots, health events, and network fluctuation replenishment buffers.

Interface Preview

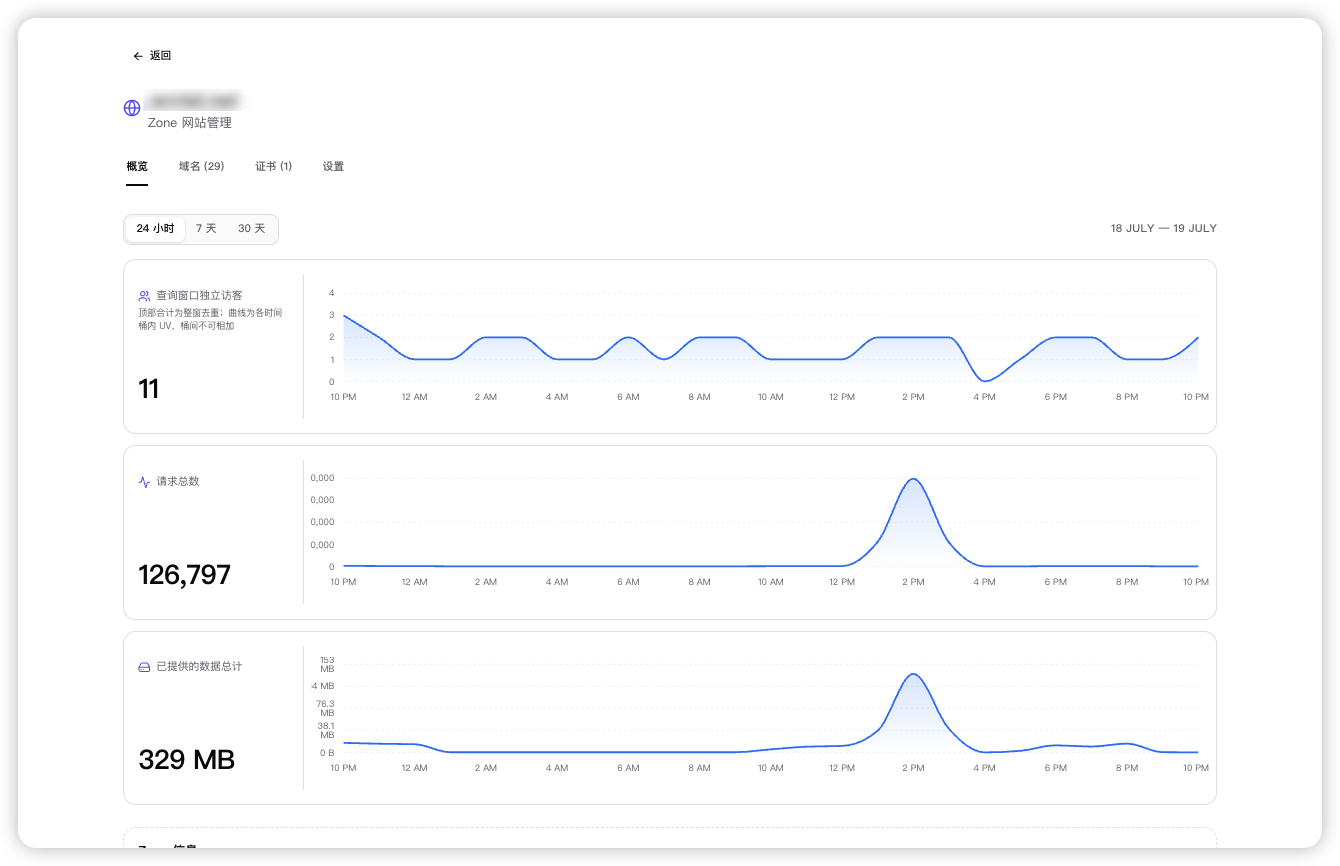

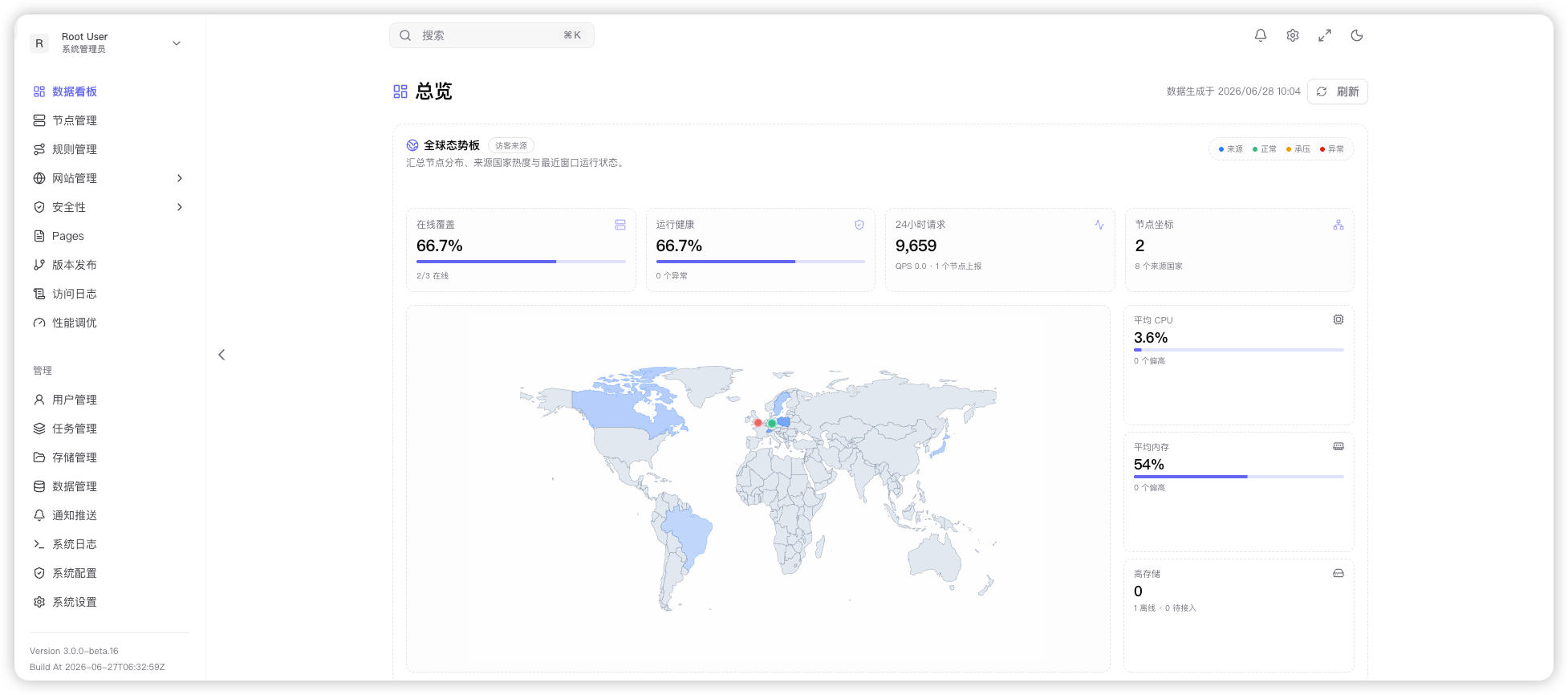

Dashboard Overview

Access Logs

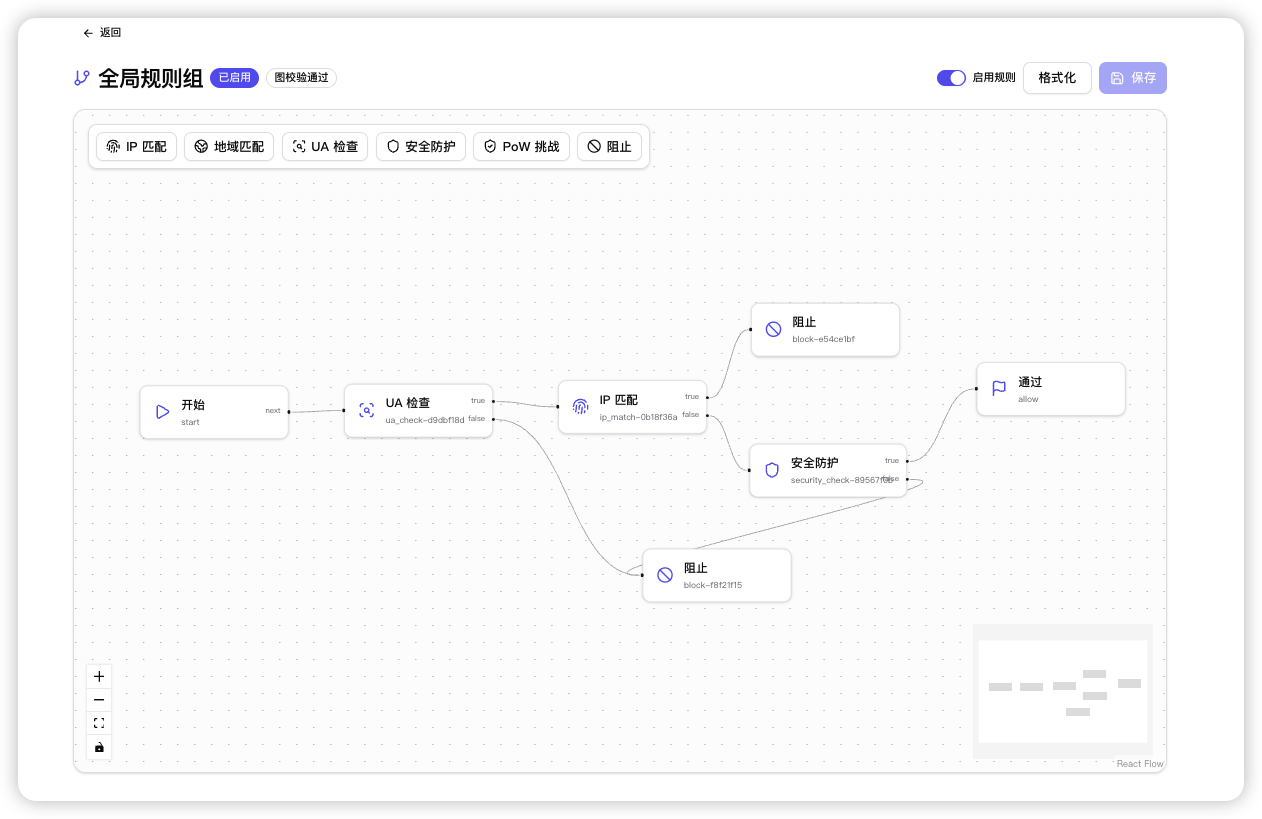

WAF Protection

Quick Start

Hardware Configuration Recommendations

Component	Minimum Hardware Requirements	Recommended Hardware Requirements	Notes
Server Control Plane	1 CPU core / 2 GB RAM / 20 GB disk	2 CPU cores / 4 GB RAM / 50 GB+ disk	Disk usage should be expanded reasonably based on access log retention duration and concurrent traffic
Agent Data Plane	1 CPU core / 512 MB RAM / 2 GB disk	2 CPU cores / 2 GB RAM / 10 GB+ disk	Expanded based on OpenResty concurrent proxy connections and WAF interception processing
Relay Relay Node	1 CPU core / 1 GB RAM / 5 GB disk	2 CPU cores / 2 GB RAM / 20 GB disk	frps transmission relay throughput is mainly limited by bandwidth and CPU throughput
OpenFlared Client	1 CPU core / 256 MB RAM / 1 GB disk	1 CPU core / 512 MB RAM / 5 GB disk	Runs independently on the internal network with extremely low resource consumption; only network throughput needs to be guaranteed

1. Start the Server

Use docker-compose:

# Download environment variable template and create .env file
curl -o .env.example https://raw.githubusercontent.com/Rain-kl/OpenFlare/refs/heads/main/.env.example
cp .env.example .env

services:
  openflare:
    image: ghcr.io/rain-kl/openflare:latest
    restart: unless-stopped
    env_file: .env
    environment:
      TZ: ${TZ:-Asia/Shanghai}
    ports:
      - "3000:3000"
    volumes:
      - openflare_uploads:/app/uploads
    depends_on:
      postgres:
        condition: service_healthy
      redis:
        condition: service_healthy

  postgres:
    image: postgres:17-alpine
    restart: unless-stopped
    environment:
      POSTGRES_DB: ${DB_NAME:-openflare}
      POSTGRES_USER: ${DB_USERNAME:-openflare}
      POSTGRES_PASSWORD: ${DB_PASSWORD:-replace-with-strong-password}
    volumes:
      - openflare_postgres_data:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U ${DB_USERNAME:-openflare} -d ${DB_NAME:-openflare}"]
      interval: 10s
      timeout: 5s
      retries: 5

  redis:
    image: valkey/valkey:8.0-alpine
    restart: unless-stopped
    command: ["valkey-server", "--appendonly", "yes"]
    volumes:
      - openflare_redis_data:/data
    healthcheck:
      test: ["CMD", "valkey-cli", "ping"]
      interval: 10s
      timeout: 5s
      retries: 5
      start_period: 5s

volumes:
    openflare_uploads:
    openflare_postgres_data:
    openflare_redis_data:

See the deployment documentation for details.

Access address: http://localhost:3000

Default account:

• Username: admin
• Password: 12345678

2. Install Agent

Before installing the Agent, first install OpenResty on the node or use the built-in OpenResty Agent Docker image.

You can copy the installation command from the control panel's Nodes Management -> Details -> Node Information -> Node ID and Deployment, or use the script below:

Docker Deployment

Docker deployment can directly run the Agent image:

docker pull ghcr.io/rain-kl/openflare-agent:latest
docker rm -f openflare-agent 2>/dev/null || true
docker run -d --name openflare-agent --restart unless-stopped \
  -p 80:80 -p 443:443/tcp -p 443:443/udp \
  -v openflare-agent-pages:/data/var/lib/openflare/pages \
  -e OPENFLARE_SERVER_URL=http://your-server:3000 \
  -e OPENFLARE_AGENT_TOKEN=YOUR_AGENT_TOKEN \
  ghcr.io/rain-kl/openflare-agent:latest

Open Source License

This project is licensed under the Apache License 2.0.
